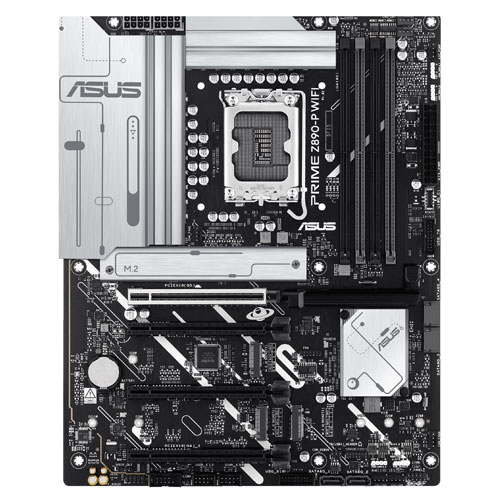

Asus Prime Z890 P Wi-Fi CSM DDR5 Motherboard ( 3 YEARS WARRANTY )
- » Brand :
- ASUS
- » Part Number :
- 90MB1I70-M0UAYC
- » Form Factor :
- ATX
- » RAM TYPE :
- DDR5
- » CPU Socket Type :
- LGA 1851 (15th gEN)
- » Stock Availability :
- Out of stock
Price: 111,000.00
Quantity
Rs.111,000.00
Description :
|
Model |
PRIME Z890-P WIFI-CSM | ||||||||||
| News & Updates | Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below: | ||||||||||
| •Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). | |||||||||||
| •Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. | |||||||||||
| , | |||||||||||
| Please visit our GLOBAL website to check and download the latest updates. | |||||||||||
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851* | ||||||||||
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |||||||||||
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. | |||||||||||
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |||||||||||
| Chipset | Intel® Z890 Chipset Support Intel® Core™ Ultra Processors (Series 2), LGA1851 | ||||||||||
| Memory | 4 x DIMM slots, max. 256GB, DDR5 | ||||||||||
| Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* | |||||||||||
| Dual channel memory architecture | |||||||||||
| DIMM Fit | |||||||||||
| Supports Intel® Extreme Memory Profile (XMP) memory module | |||||||||||
| ASUS Enhanced Memory Profile III(AEMPIII) | |||||||||||
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. | |||||||||||
| ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |||||||||||
| Graphics | 1 x DisplayPort** | ||||||||||
| 1 x HDMITM port*** | |||||||||||
| 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs**** | |||||||||||
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |||||||||||
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |||||||||||
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |||||||||||
| **** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. | |||||||||||
| **** In DP alt mode, supports up to UHBR20. | |||||||||||
| ***** VGA resolution support depends on processors' or graphic cards' resolution. | |||||||||||
| ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. | |||||||||||
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2)* | ||||||||||
| 1 x PCIe 5.0 x16 slot | |||||||||||
| Intel® Z890 Chipset | |||||||||||
| 2 x PCIe 4.0 x16 slots (support x4 mode) | |||||||||||
| 1 x PCIe 4.0 x16 slot (supports x1 mode) | |||||||||||
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |||||||||||
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. | |||||||||||
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* | ||||||||||
| Intel® Core™ Ultra Processors (Series 2)* | |||||||||||
| M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) | |||||||||||
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |||||||||||
| Intel® Z890 Chipset | |||||||||||
| M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) | |||||||||||
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |||||||||||
| 4 x SATA 6Gb/s ports | |||||||||||
| * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. | |||||||||||
| Ethernet | 1 x Realtek 2.5Gb Ethernet | ||||||||||
| ASUS LANGuard | |||||||||||
| Wireless & Bluetooth | Wi-Fi 7* | ||||||||||
| 2x2 Wi-Fi 7 (802.11be) | |||||||||||
| Supports 2.4/5/6GHz frequency band** | |||||||||||
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. | |||||||||||
| Bluetooth® v5.4*** | |||||||||||
| *Wi-Fi features may vary depending on the operating system | |||||||||||
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |||||||||||
| For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. | |||||||||||
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |||||||||||
| *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |||||||||||
| USB | Rear USB (Total 8 ports) | ||||||||||
| 1 x Thunderbolt™ 4 port (1 x USB Type-C®) | |||||||||||
| 1 x USB 10Gbps port (1 x Type-A) | |||||||||||
| 2 x USB 5Gbps ports (2 x Type-A) | |||||||||||
| 4 x USB 2.0 ports (4 x Type-A)** | |||||||||||
| Front USB (Total 9 ports) | |||||||||||
| 1 x USB 10Gbps connector (supports USB Type-C®) | |||||||||||
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |||||||||||
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports** | |||||||||||
| * USB Type-C® power delivery output: max. 5V/3A | |||||||||||
| ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. | |||||||||||
| ** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth. | |||||||||||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* | ||||||||||
| - Supports: Jack-detection, | |||||||||||
| Multi-streaming, Front Panel Jack-retasking | |||||||||||
| - Supports up to 24-Bit/192 kHz playback | |||||||||||
| Audio Features | |||||||||||
| - Audio Shielding | |||||||||||
| - Premium audio capacitors | |||||||||||
| - Dedicated audio PCB layers | |||||||||||
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output | |||||||||||

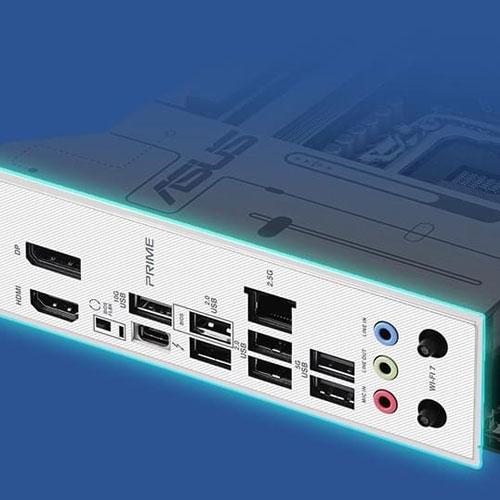

| Back Panel I/O Ports | 1 x Thunderbolt™ 4 USB Type-C® port | ||||||||||
| 1 x USB 10Gbps port (1 x Type-A) | |||||||||||
| 2 x USB 5Gbps ports (2 x Type-A) | |||||||||||
| 4 x USB 2.0 ports (4 x Type-A) | |||||||||||
| 1 x DisplayPort | |||||||||||
| 1 x HDMITM port | |||||||||||
| 1 x Wi-Fi module | |||||||||||
| 1 x Realtek 2.5Gb Ethernet port | |||||||||||
| 3 x Audio jacks | |||||||||||
| 1 x BIOS FlashBack™ button | |||||||||||
| Internal I/O Connectors | Fan and Cooling related | ||||||||||
| 1 x 4-pin CPU Fan header | |||||||||||
| 1 x 4-pin CPU OPT Fan header | |||||||||||
| 1 x 4-pin AIO Pump header | |||||||||||
| 4 x 4-pin Chassis Fan headers | |||||||||||
| Power related | |||||||||||
| 1 x 24-pin Main Power connector | |||||||||||
| 2 x 8-pin +12V CPU Power connector | |||||||||||
| Storage related | |||||||||||
| 4 x M.2 slots (Key M) | |||||||||||
| 4 x SATA 6Gb/s ports | |||||||||||
| USB | |||||||||||
| 1 x USB 10Gbps connector (supports USB Type-C®) | |||||||||||
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |||||||||||
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |||||||||||
| Miscellaneous | |||||||||||
| 3 x Addressable Gen2 headers | |||||||||||
| 1 x Aura RGB header | |||||||||||
| 1 x Clear CMOS header | |||||||||||
| 1 x COM Port header | |||||||||||
| 1 x Front Panel Audio header (F_AUDIO) | |||||||||||
| 1 x S/PDIF Out header | |||||||||||
| 1 x SPI TPM header (14-1pin) | |||||||||||
| 1 x 10-1 pin Front Panel System header | |||||||||||
| 1 x Thunderbolt™ (USB4®) header | |||||||||||
| Special Features | |||||||||||
| ASUS 5X PROTECTION III | |||||||||||
| - DIGI+ VRM (- Digital power design with DrMOS) | |||||||||||
| - LANGuard | |||||||||||
| - Overvoltage Protection | |||||||||||
| - SafeSlot | |||||||||||
| - Stainless-Steel Back I/O | |||||||||||
| ASUS Q-Design | |||||||||||
| - M.2 Q-Latch | |||||||||||
| - PCIe Slot Q-Release | |||||||||||
| - Q-Antenna | |||||||||||
| - Q-Dashboard | |||||||||||
| - Q-DIMM | |||||||||||
| - Q-LED Core | |||||||||||
| - Q-Slot | |||||||||||
| ASUS Thermal Solution | |||||||||||
| - M.2 heatsink | |||||||||||
| - VRM heatsink design | |||||||||||
| ASUS EZ DIY | |||||||||||
| - BIOS FlashBack™ button | |||||||||||
| - BIOS FlashBack™ LED | |||||||||||
| - ProCool | |||||||||||
| - Pre-mounted I/O shield | |||||||||||
| Aura Sync | |||||||||||
| - Aura RGB header | |||||||||||
| - Addressable Gen2 headers | |||||||||||
| Software Features | ASUS Exclusive Software | ||||||||||
| Armoury Crate | |||||||||||
| - Aura Creator | |||||||||||
| - Aura Sync | |||||||||||
| - Fan Xpert 4 (with AI Cooling II) | |||||||||||
| - Power Saving | |||||||||||
| ASUS DriverHub | |||||||||||
| ASUS GlideX | |||||||||||
| ASUS CPU-Z | |||||||||||
| TurboV Core | |||||||||||
| Norton 360 Deluxe (60 Days Free Trial) | |||||||||||
| WinRAR (40 Days Free Trial) | |||||||||||
| UEFI BIOS | |||||||||||
| ASUS EZ DIY | |||||||||||
| - ASUS CrashFree BIOS 3 | |||||||||||
| - ASUS EZ Flash | |||||||||||
| - ASUS UEFI BIOS EZ Mode | |||||||||||
| - ASUS MyHotkey | |||||||||||
| NPU Boost (Intel K-series Processors only) | |||||||||||
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS | ||||||||||
| Manageability | WOL by PME, PXE | ||||||||||
| Accessories | Cables | ||||||||||
| 2 x SATA 6Gb/s cables | |||||||||||
| Miscellaneous | |||||||||||
| 1 x ASUS WiFi Q-Antenna | |||||||||||
| 1 x M.2 rubber package | |||||||||||
| 2 x Screw packages for M.2 SSD | |||||||||||
| Documentation | |||||||||||
| 1 x Quick start guide | |||||||||||
| Operating System | Windows 11 (22H2 & later) | ||||||||||
| Form Factor | ATX Form Factor | ||||||||||
| 12 inch x 9.6inch ( 30.5 cm x 24.4 cm ) | |||||||||||
