MSI PRO Z790-A WIFI (DDR5) Motherboard
- » Brand :
- MSI
- » Part Number :
- 911-7E07-003
- » Form Factor :
- ATX
- » CPU Socket Type :
- LGA 1700 (12th,13th,14th GEN)
- » Stock Availability :
- Out of stock
Price: 110,000.00
Description :
| CHIPSET | INTEL Z790 | |||||||||||
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors | |||||||||||
| LGA 1700 | ||||||||||||
| MEMORY | 4x DDR5, Maximum Memory Capacity 128GB | |||||||||||
| Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ | ||||||||||||
| 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: | ||||||||||||
| • 1DPC 1R Max speed up to 7200+ MHz | ||||||||||||
| • 1DPC 2R Max speed up to 6600+ MHz | ||||||||||||
| • 2DPC 1R Max speed up to 6400+ MHz | ||||||||||||
| • 2DPC 2R Max speed up to 5600+ MHz | ||||||||||||
| Supports Intel® XMP3.0 OC | ||||||||||||
| Supports Dual-Controller Dual-Channel mode | ||||||||||||
| Supports non-ECC, un-buffered memory | ||||||||||||
| ONBOARD GRAPHICS | 1x HDMI™ | |||||||||||
| 1x DisplayPort | ||||||||||||
| Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* | ||||||||||||
| Support DP 1.4, maximum resolution of 8K 60Hz* | ||||||||||||
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | ||||||||||||
| EXPANSION SLOT | 3x PCI-E x16 slot | |||||||||||
| 1x PCI-E x1 slot | ||||||||||||
| PCI_E1 PCIe 5.0 supports up to x16 (From CPU) | ||||||||||||
| PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) | ||||||||||||
| PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) | ||||||||||||
| PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) | ||||||||||||
| STORAGE | 4x M.2 slot | |||||||||||
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices | ||||||||||||
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | ||||||||||||
| M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | ||||||||||||
| M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | ||||||||||||
| 6x SATA 6G port | ||||||||||||
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |||||||||||
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices | ||||||||||||
| USB | 2x USB 2.0 (Rear) | |||||||||||
| 4x USB 2.0 (Front) | ||||||||||||
| 2x USB 3.2 Gen1 Type A (Rear) | ||||||||||||
| 2x USB 3.2 Gen1 Type A (Front) | ||||||||||||
| 3x USB 3.2 Gen2 Type A (Rear) | ||||||||||||
| 1x USB 3.2 Gen2 Type C (Front) | ||||||||||||
| 1x USB 3.2 Gen2x2 Type C (Rear) | ||||||||||||
| LAN | Intel® 2.5Gbps LAN | |||||||||||
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E | |||||||||||
| The Wireless module is pre-installed in the M.2 (Key-E) slot | ||||||||||||
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | ||||||||||||
| Supports 802.11 a/ b/ g/ n/ ac/ ax | ||||||||||||
| Supports Bluetooth® 5.3, FIPS, FISMA | ||||||||||||
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. | ||||||||||||
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | ||||||||||||
| AUDIO | Realtek® ALC4080 Codec | |||||||||||
| 7.1-Channel USB High Performance Audio | ||||||||||||
| Supports S/PDIF output | ||||||||||||
| INTERNAL I/O | 1x Power Connector(ATX_PWR) | |||||||||||
| 2x Power Connector(CPU_PWR) | ||||||||||||
| 1x CPU Fan | ||||||||||||
| 1x Pump Fan | ||||||||||||
| 6x System Fan | ||||||||||||
| 2x Front Panel (JFP) | ||||||||||||
| 1x Chassis Intrusion (JCI) | ||||||||||||
| 1x Front Audio (JAUD) | ||||||||||||
| 1x TBT connector (JTBT, supports RTD3) | ||||||||||||
| 1x Tuning Controller connector(JDASH) | ||||||||||||
| 3x Addressable V2 RGB LED connector (JARGB_V2) | ||||||||||||
| 1x RGB LED connector(JRGB) | ||||||||||||
| 1x TPM pin header(Support TPM 2.0) | ||||||||||||
| 4x USB 2.0 | ||||||||||||
| 2x USB 3.2 Gen1 Type A | ||||||||||||
| 1x USB 3.2 Gen2 Type C | ||||||||||||
| LED FEATURE | 4x EZ Debug LED | |||||||||||

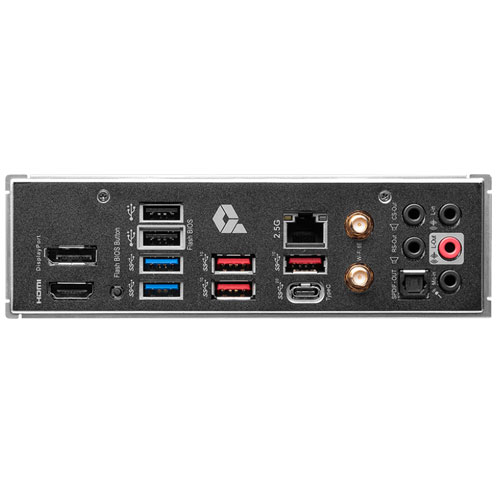

| BACK PANEL PORTS | DisplayPort | |||||||||||
| USB 2.0 | ||||||||||||
| 2.5G LAN | ||||||||||||
| Wi-Fi / Bluetooth | ||||||||||||
| Audio Connectors | ||||||||||||
| HDMI™ | ||||||||||||
| Flash BIOS Button | ||||||||||||
| USB 3.2 Gen 1 5Gbps (Type-A) | ||||||||||||
| USB 3.2 Gen 2 10Gbps (Type-A) | ||||||||||||
| USB 3.2 Gen 2x2 20Gbps (Type-C) | ||||||||||||
| S/PDIF-OUT | ||||||||||||
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit | |||||||||||
| PCB DIMENSION | ATX | |||||||||||
| 243.84mmx304.8mm | ||||||||||||
