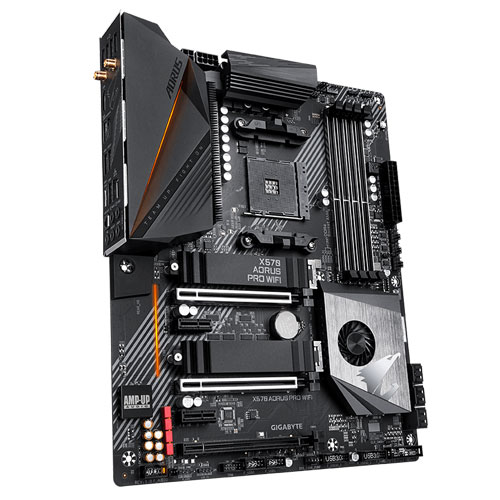

Gigabyte X570 Aorus Pro Wi-Fi MotherBoards

» Brand
:
GIGABYTE
» Part Number
:
X570 AORUS PRO WIFI
» Form Factor
:
ATX
» CPU Socket Type
:
AMD AM4
» Stock Availability
:
In stock

Price: 66,500.00

Quantity
Rs.66,500.00

Description :

CPU

1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors



Chipset

1. AMD X570



Memory

1. 3rd Generation AMD Ryzen™ processors:



Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules



2. 2nd Generation AMD Ryzen™ processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:



Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules



3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory



4. Dual channel memory architecture



5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*



* ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.



6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules



7. Support for Extreme Memory Profile (XMP) memory modules



Onboard Graphics

Integrated Graphics Processor:



1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz



* Support for HDMI 2.0 version, HDCP 2.2, and HDR.



Maximum shared memory of 16 GB



Audio

1. Realtek® ALC1220-VB codec



* The back panel line out jack supports DSD audio.



2. High Definition Audio



3. 2/4/5.1/7.1-channel



4. Support for S/PDIF Out



LAN

1. Intel® GbE LAN chip (10/100/1000 Mbit)



Wireless Communication module

1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band



2. BLUETOOTH 5.0



3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate



Expansion Slots

Integrated in the CPU (PCIEX16/PCIEX8):



· 3rd Generation AMD Ryzen™ processors:



1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)



2. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)



· 2nd Generation AMD Ryzen™ processors:



1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)



2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)



* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.



* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors and PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.



· 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:



1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)



Integrated in the Chipset (PCIEX4/PCIEX1):



1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)



* For 3rd Generation AMD Ryzen™ processors only.



2. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0



* For 3rd Generation AMD Ryzen™ processors only.



Multi-Graphics Technology

1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies



2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies



Storage Interface

Integrated in the CPU (M2A_SOCKET):



· 3rd Generation AMD Ryzen™ processors:



1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)



· 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:



1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)



Integrated in the Chipset (M2B_SOCKET):



1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)



* For 3rd Generation AMD Ryzen™ processors only.



2. 6 x SATA 6Gb/s connectors



3. Support for RAID 0, RAID 1, and RAID 10



USB

Integrated in the CPU:



1. 3 x USB 3.2 Gen 1 ports on the back panel



2. 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel



* For 3rd Generation AMD Ryzen™ processors only.



Chipset:



1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header



2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support



3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel



4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers



Chipset+USB 2.0 Hubs:



1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)



Internal I/O Connectors

1. 1 x 24-pin ATX main power connector



2. 1 x 8-pin ATX 12V power connector



3. 1 x 4-pin ATX 12V power connector



4. 1 x CPU fan header



5. 1 x water cooling CPU fan header



6. 3 x system fan headers



7. 2 x system fan/water cooling pump headers



8. 2 x addressable LED strip headers



9. 2 x RGB LED strip headers



10. 1 x CPU cooler LED strip/RGB LED strip header



11. 2 x M.2 Socket 3 connectors



12. 6 x SATA 6Gb/s connectors



13. 1 x front panel header



14. 1 x front panel audio header



15. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support



16. 2 x USB 3.2 Gen 1 headers



17. 2 x USB 2.0/1.1 headers



18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)



19. 1 x Clear CMOS jumper



20. 2 x temperature sensor headers



21. 1 x Q-Flash Plus button



Back Panel Connectors

1. 2 x SMA antenna connectors (2T2R)



2. 1 x HDMI port



3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support



4. 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red)



* For 3rd Generation AMD Ryzen™ processors only.



5. 1 x USB 3.2 Gen 2 Type-A port (red)



6. 3 x USB 3.2 Gen 1 ports



7. 4 x USB 2.0/1.1 ports



8. 1 x RJ-45 port



9. 1 x optical S/PDIF Out connector



10. 5 x audio jacks



H/W Monitoring

1. Voltage detection



2. Temperature detection



3. Fan speed detection



4. Water cooling flow rate detection



5. Overheating warning



6. Fan fail warning



7. Fan speed control



BIOS

1. 2 x 128 Mbit flash



2. Use of licensed AMI UEFI BIOS



3. Support for DualBIOS™



4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Unique Features

1. Support for APP Center



* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.



@BIOS



AutoGreen



Cloud Station



EasyTune



Fast Boot



Game Boost



ON/OFF Charge



RGB Fusion



Smart Backup



Smart Keyboard



Smart Survey



System Information Viewer



USB Blocker



2. Support for Q-Flash Plus



3. Support for Q-Flash



4. Support for Xpress Install



Operating System

1. Support for Windows 10 64-bit



Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm
