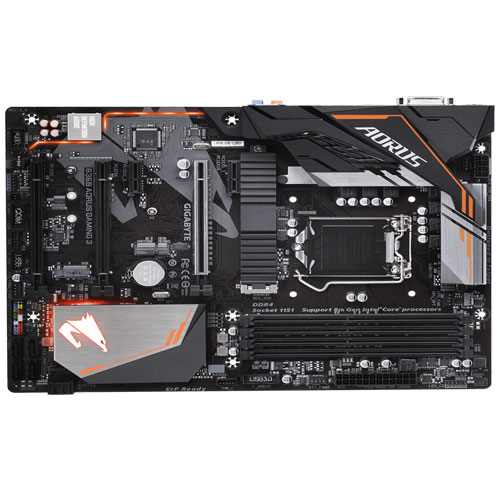

GIGABYTE B360 AORUS GAMING 3 MOTHERBOARD

» Brand
:
GIGABYTE
» Part Number
:
B360 AORUS GAMING 3
» CPU Socket Type
:
LGA 1151
» Form Factor
:
ATX
» Stock Availability
:
Out of stock

Price: 22,000.00

Quantity
Rs.22,000.00

Description :

  • CPU



    1. Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel®Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)



  • Chipset
    1. Intel® B360 Express Chipset



  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 2666/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
      * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
    (Please refer "Memory Support List" for more information.)



  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.2.
    Maximum shared memory of 1 GB



  • Audio
    1. Realtek® ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out



  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)



  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the PCIEX1_2/PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 or PCIEX1_3 slot is populated.
    3. 1 x PCI Express x16 slot, running at x1 (PCIEX1_3)
    4. 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    5. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
      * The CNVi connector shares bandwidth with the F_USB2 header. When a WIFI module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.



  • Storage Interface
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
    3. 6 x SATA 6Gb/s connectors
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready



  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies



  • USB
    Chipset:
    1. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
    2. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
    3. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    4. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)



  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 2 x system fan headers
    6. 1 x system fan/water cooling pump header
    7. 2 x digital LED strip headers
    8. 2 x digital LED strip power select jumpers
    9. 2 x RGB (RGBW) LED strip headers
    10. 6 x SATA 6Gb/s connectors
    11. 2 x M.2 Socket 3 connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB 3.1 Gen 1 header
    15. 1 x USB 2.0/1.1 header
    16. 1 x S/PDIF Out header
    17. 1 x Thunderbolt™ add-in card connector
    18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    19. 1 x serial port header
    20. 1 x Clear CMOS jumper



  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DVI-D port
    3. 1 x HDMI port
    4. 1 x USB 3.1 Gen 2 Type-A port (red)
    5. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
    6. 2 x USB 3.1 Gen 1 ports
    7. 4 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks



  • I/O Controller
    1. iTE® I/O Controller Chip



  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.



  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install



  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed



  • Operating System
    1. Support for Windows 10 64-bit



  • Form Factor
    1. ATX Form Factor; 30.5cm x 22.5cm



  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.



* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
