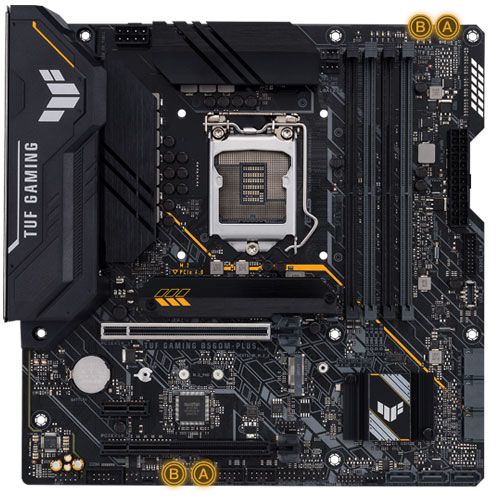

Asus TUF Gaming B560M PLUS WI-FI Motherboard
- » Brand :
- ASUS
- » Part Number :
- 90MB1770-M0UAY0
- » Form Factor :
- Micro ATX
- » CPU Socket Type :
- LGA 1200
- » Stock Availability :
- Out of stock
Price: 53,000.00
Description :
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core | |
| Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU | ||
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | ||
| * Refer to www.asus.com for CPU support list. | ||
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | ||
| Chipset | B560 | |
| Memory | DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600 | |
| (OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered | ||
| Memory* | ||
| Dual Channel Memory Architecture | ||
| Supports Intel® Extreme Memory Profile (XMP) | ||
| OptiMem II | ||
| 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, | ||
| others will run at the maximum transfer rate of DDR4 2666MHz. | ||
| * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. | ||
| * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists),and memory | ||
| frequency support depends on the CPU types. | ||
| Graphics | 1 x HDMI 2.0 | |
|
1 x DisplayPort 1.4** |
||
|
1 x HDMI™ 1.4 / 2.0*** |
||
|
* Graphics specifications may vary between CPU types. |
||
|
** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of |
||
| 4096 x 2304 @60Hz Only Intel® 11th Gen processors support HDMI™ 2.0 with max. | ||
| resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz | ||
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) | |
| Intel® 11th &10th Gen Processors | ||
| 1 x PCIe 4.0/3.0 x16 slot(s)* | ||
| - Intel® 11th Gen processors support PCIe 4.0 x16 | ||
| - Intel®10th Gen processors support PCIe 3.0 x16 | ||
| Intel® B560 Chipset | ||
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | ||
| 1 x PCIe 3.0 x1 slots | ||
| Storage | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports | |
| Intel®11th Gen Processors | ||
| M.2_1 slot (Key M), type 2242/2260/2280 | ||
| Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other | ||
| CPUs | ||
| Intel® B560 Chipset | ||
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) | ||
| 6 x SATA 6Gb/s ports | ||
| To enable Intel® Optane™ Memory (Hybrid Storage device) it must be installed in | ||
| PCH-attached slots with Intel® Rapid Storage Technology. | ||
| M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode | ||
| SATA_2 will be disabled. | ||
| Wireless & Bluetooth | Intel® Wi-Fi 6 | |
| 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | ||
| Supports 2.4/5GHz frequency band | ||
| Bluetooth v5.0 or later | ||
| USB | Rear USB:Total 9 ports | |
| 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) | ||
| 3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C®) | ||
| 4 x USB 2.0 port(s) (4 x Type-A) | ||
| 1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C®) | ||
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | ||
| 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | ||
| Audio | Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | ||
| Audio Features | ||
| - Audio Shielding | ||
| - Rear optical S/PDIF out port | ||
| - Premium Japanese audio capacitors | ||
| - Dedicated audio PCB layers | ||

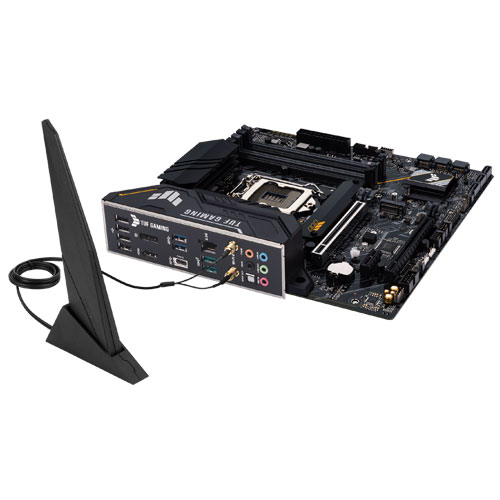

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) | |
| 3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®) | ||
| 4 x USB 2.0 port(s) (4 x Type-A) | ||
| 1 x DisplayPort | ||
| 1 x HDMI™ port | ||
| 1 x ASUS Wi-Fi Module | ||
| 1 x Realtek 2.5Gb Ethernet port | ||
| 5 x Audio jacks | ||
| 1 x Optical S/PDIF out port | ||
| Intrernal I/O Connectors |
1 x TB Header (for add-on TB card) |
|
| Fan and Cooling related | ||
| 1 x 4-pin CPU Fan header(s) | ||
| 1 x 4-pin CPU OPT Fan header(s) | ||
| 2 x 4-pin Chassis Fan header(s) | ||
| Power related | ||
| 1 x 24-pin Main Power connector | ||
| 1 x 8-pin +12V Power connector | ||
| Storage related | ||
| 2 x M.2 slots (Key M) | ||
| 6 x SATA 6Gb/s ports | ||
| USB | ||
| 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) | ||
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | ||
| 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | ||
| Miscellaneous | ||
| 2 x AURA Addressable Gen 2 header(s) | ||
| 2 x AURA RGB header(s) | ||
| 1 x Clear CMOS header | ||
| 1 x COM Port header | ||
| 1 x Front Panel Audio header (AAFP) | ||
| 1 x 20-3 pin System Panel header with Chassis intrude function | ||
| 1 x Thunderbolt™ header | ||
| Special Features | ASUS TUF PROTECTION | |
| - Digital power design with DrMOS | ||
| - Enhanced DRAM Overcurrent Protection | ||
| - ESD Guards | ||
| - TUF LANGuard | ||
| - Overvoltage Protection | ||
| - SafeSlot Core+ | ||
| - Stainless-Steel Back I/O | ||
| ASUS Q-Design | ||
| - M.2 Q-Latch | ||
| - Q-DIMM | ||
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | ||
| - Q-Slot | ||
| ASUS Thermal Solution | ||
| - Flexible M.2 heatsink | ||
| - VRM heatsink design | ||
| ASUS EZ DIY | ||
| - ProCool | ||
| - Pre-mounted I/O shield | ||
| AURA Sync | ||
| Software Features | - AURA RGB header(s) | |
| - Addressable Gen 2 RGB header(s) | ||
| Software Features | ASUS Exclusive Software | |
| Armoury Crate | ||
| - AURA Creator | ||
| - AURA Sync | ||
| - Two-Way AI Noise Cancelation | ||
| AI Suite 3 | ||
| - Performance And Power Saving Utility | ||
| TurboV EVO | ||
| EPU | ||
| Digi+ VRM | ||
| Fan Xpert 2+ | ||
| - EZ update | ||
| TUF GAMING CPU-Z | ||
| AI Charger | ||
| ASUS Turbo LAN | ||
| DAEMON Tools | ||
| DTS Custom for GAMING Headsets | ||
| MyAsus | ||
| Norton Anti-virus software (Free Trial version) | ||
| WinRAR | ||
| UEFI BIOS | ||
| ASUS EZ DIY | ||
| - ASUS CrashFree BIOS 3 | ||
| - ASUS EZ Flash 3 | ||
| - ASUS UEFI BIOS EZ Mode | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Manageability | WOL by PME, PXE | |
| Accessories | Cables | |
| 2 x SATA 6Gb/s cables | ||
| Miscellaneous | ||
| 1 x ASUS Wi-Fi moving antennas | ||
| 1 x M.2 Rubber Package(s) | ||
| 1 x M.2 SSD screw package(s) | ||
| 1 x TUF Gaming sticker | ||
| Installation Media | ||
| 1 x Support DVD | ||
| Documentation | ||
| 1 x TUF Certification card | ||
| 1 x User manual |
