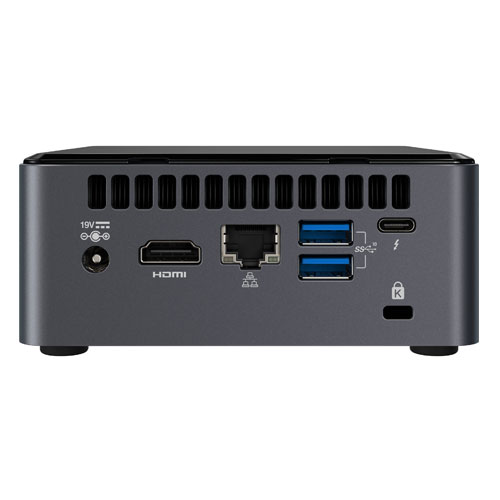

A Mini PC Kit Intel NUC i7-8559U Processor
- » Brand :
- INTEL
- » Part Number :
- BOXNUC8i7BEH1
- » Stock Availability :
- Out of stock
Price: 95,000.00
Description :
Technical Specifications | |
Essentials | |
Status |
Launched |
Product Collection |
Intel® NUC Kit with 8th Generation Intel® Core™ Processors |
Launch Date |
Q3'18 |
Supported Operating Systems |
Windows 10, 64-bit* |
Board Number |
NUC8BEB |
Board Form Factor |
UCFF (4" x 4") |
Socket |
Soldered-down BGA |
Internal Drive Form Factor |
M.2 and 2.5" Drive |
# of Internal Drives Supported |
2 |
Lithography |
14 nm |
TDP |
28 W |
DC Input Voltage Supported |
12-19 VDC |
Processor Included |
Intel® Core™ i7-8559U Processor |
Warranty Period |
3 yrs |
Supplemental Information | |
Embedded Options Available |
No |
Description |
Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones |
Memory & Storage | |
Max Memory Size (dependent on memory type) |
32 GB |
Memory Types |
DDR4-2400 1.2V SO-DIMM |
Max # of Memory Channels |
2 |
Max Memory Bandwidth |
38.4 GB/s |
Max # of DIMMs |
2 |
ECC Memory Supported ‡ |
No |
Processor Graphics ‡ |
Intel® Iris® Plus Graphics 655 |
Integrated Graphics ‡ |
Yes |
Graphics Output |
HDMI 2.0a; USB-C (DP1.2) |
# of Displays Supported ‡ |
3 |
Expansion Options | |
PCI Express Revision |
Gen3 |
PCI Express Configurations ‡ |
M.2 slot with PCIe X4 lanes |
Removable Memory Card Slot |
microSDXC with UHS-I support |
M.2 Card Slot (storage) |
22x42/80 |
I/O Specifications | |
# of USB Ports |
6 |
USB Configuration |
2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers |
USB Revision |
2.0, 3.1 Gen2 |
USB 2.0 Configuration (External + Internal) |
0 + 2 |
USB 3.0 Configuration (External + Internal) |
2B 2F + 0 |
Total # of SATA Ports |
2 |
Max # of SATA 6.0 Gb/s Ports |
2 |
RAID Configuration |
2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
Audio (back channel + front channel) |
7.1 digital (HDMI mDP); L+R mic (F) |
Integrated LAN |
Intel® Ethernet Connection I219-V |
Integrated Wireless‡ |
Intel® Wireless-AC 9560 + Bluetooth 5.0 |
Integrated Bluetooth |
Yes |
Consumer Infrared Rx Sensor |
Yes |
Additional Headers |
CEC, 2x USB2.0, FRONT_PANEL |
# of Thunderbolt™ 3 Ports |
1 |
Package Specifications | |
Chassis Dimensions |
117 x 112 x 51mm |
Advanced Technologies | |
Intel® Optane™ Memory Supported ‡ |
Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ |
Yes |
Intel vPro® Platform Eligibility ‡ |
No |
TPM |
No |
Intel® HD Audio Technology |
Yes |
Intel® Rapid Storage Technology |
Yes |
Intel® Virtualization Technology (VT-x) ‡ |
Yes |
Intel® Platform Trust Technology (Intel® PTT) |
Yes |
Security & Reliability | |
Intel® AES New Instructions |
Yes |
